Arundel BlendHandmade Roof Tiles

Price range: £1.14 through £10.80 (Inc. VAT)

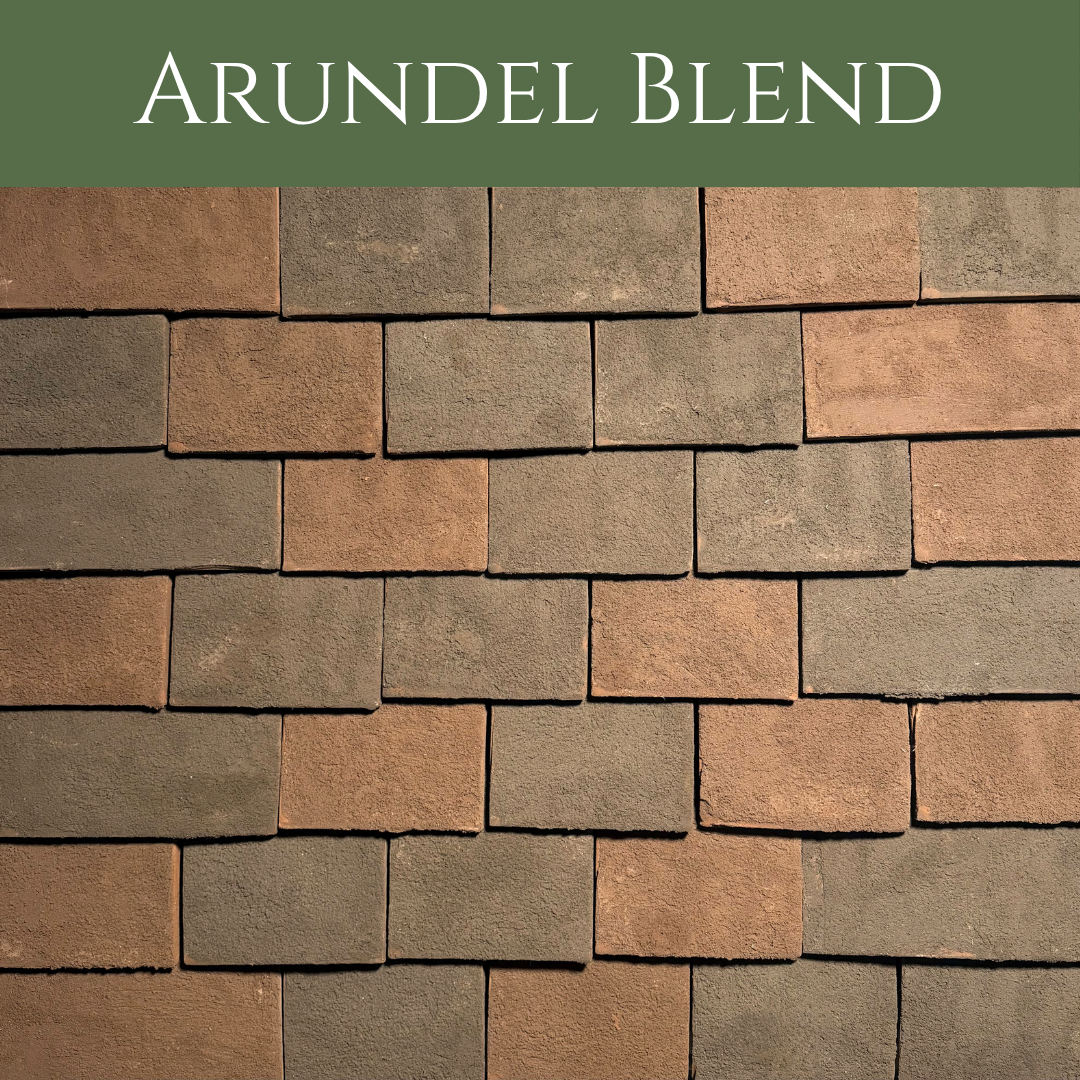

Arundel Blend

A characterful pairing of the Amberley and Wingham ranges, bringing together warm chestnut and burnt-orange tiles. The contrast is striking yet beautifully balanced, with both ranges carrying that same distinctive textured finish that makes them so special. Arundel Blend is ideal for period properties, listed buildings, and renovations where the roof should look as though it has aged gracefully over generations.

Recommendation

  • Nib Roof Tiles to be laid in accordance with BS 5534
  • Tiles to be drawn from all pallets to achieve the best blend and avoid “patching”
  • Tiles should be layed by a well practiced roofer with experience using handmade clay tiles
  • Pallets on site should be on firm, dry and level ground, no more than two pallets high
  • Due to limitations of the print process, colours should be selected from actual samples

Download Technical Datasheet (PDF)



Due to the variations in clay, finishes and production processes, it is good practice to request a most recent sample before confirming an order. Colours, shades, and shapes can vary batch to batch.

QUALITY CERTIFICATION

Spicer tiles in this collection are independently tested by
LUCIDEON® (formerly CERAM) and have passed:
BSEN 538:1994 – for strength *
BSEN 539-2:2005 – for resistance to frost damage
BSEN 539-1:2006 – for impermeability to water

* In accordance with BSEN 1304:2005 clay roofing tiles and fittings product definitions and specifications.

Add to quote
SKU: N/A Category:

Description

Description Roof Vertical
Min Roof Pitch 35° 75°
Batten spacing at max gauge 100mm 114mm
Size of tile 265 x 165mm 265 x 165mm
Covering Capacity 60 / m2 53 / m2
Cover Width 165 165
Weight as Laid 72 Kg / m2 63.6 Kg / m2
Battens Per M2 10m 8.8m
Batten Size – up to 450mm after centres 38mm x 25mm 38mm x 25mm
Batten Size – up to 600mm after centres 38mm x 25mm 38mm x 25mm
Nail Size / Type for Tiles 38 x 3.35mm aluminium ring shank clout nail 38 x 3.35mm aluminium ring shank clout nail

Where to Buy

      Additional information

      Tile Type

      Tiles, Eaves, Gables, Bonnets, Valleys, Hog Back Ridge, Half Round Ridge, Angles
