Oakleigh BlendHandmade Roof Tiles

Price range: £1.14 through £10.80 (Inc. VAT)

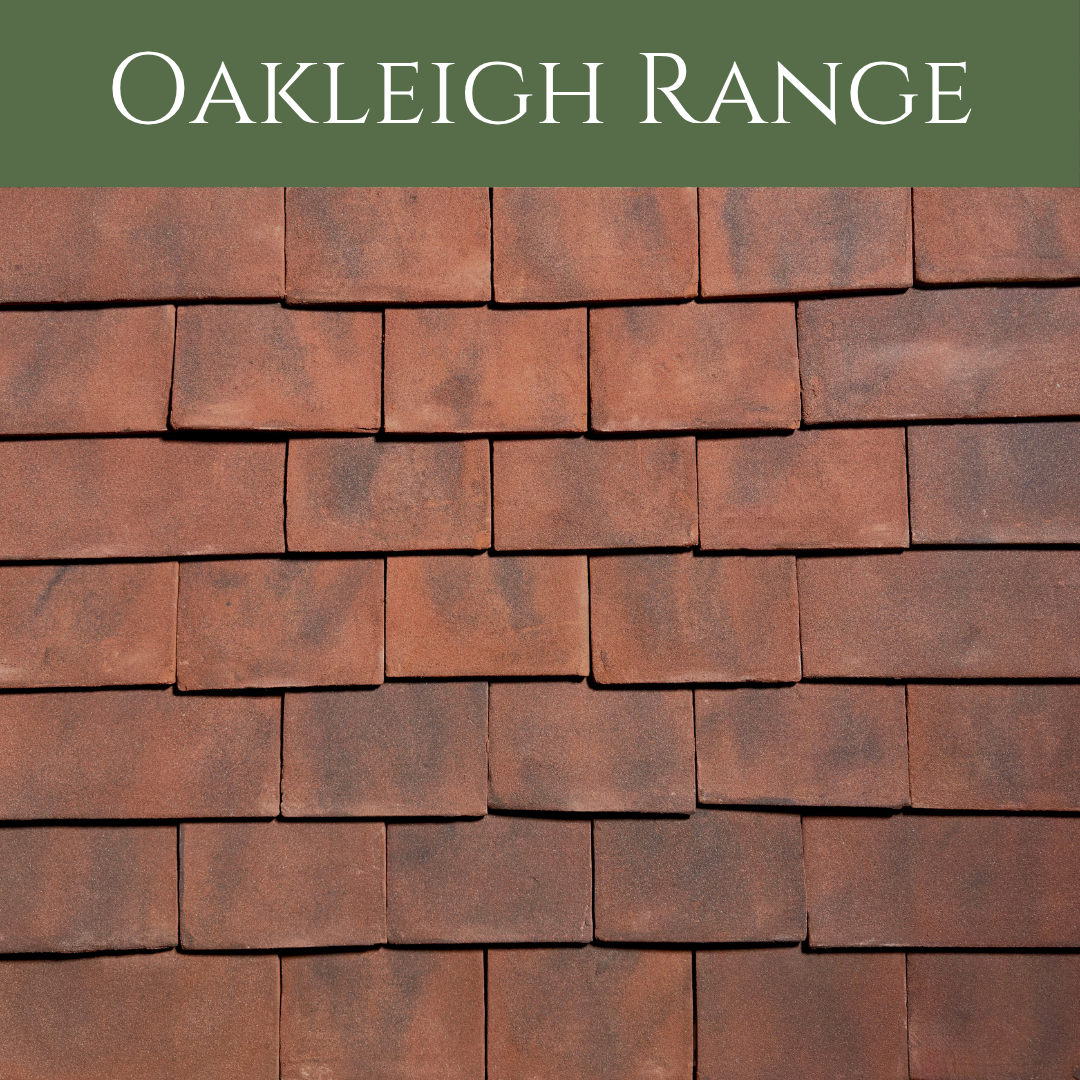

Oakleigh Blend

A deeper, dustier red than our Hever Range, with rich russet tones marbled through with soft shadows. The result is a roof full of subtle variation – warm and earthy, but with a grounded, mature feel. Oakleigh is a lovely fit for manor houses, traditional properties, and renovations where the roof should feel rooted and timeless.

Recommendation

  • Nib Roof Tiles to be laid in accordance with BS 5534
  • Tiles to be drawn from all pallets to achieve the best blend and avoid “patching”
  • Tiles should be layed by a well practiced roofer with experience using handmade clay tiles
  • Pallets on site should be on firm, dry and level ground, no more than two pallets high
  • Due to limitations of the print process, colours should be selected from actual samples

Download Technical Datasheet (PDF)



Due to the variations in clay, finishes and production processes, it is good practice to request a most recent sample before confirming an order. Colours, shades, and shapes can vary batch to batch.

QUALITY CERTIFICATION

Spicer tiles in this collection are independently tested by
LUCIDEON® (formerly CERAM) and have passed:
BSEN 538:1994 – for strength *
BSEN 539-2:2005 – for resistance to frost damage
BSEN 539-1:2006 – for impermeability to water

* In accordance with BSEN 1304:2005 clay roofing tiles and fittings product definitions and specifications.

Add to quote
SKU: N/A Category:

Description

Description Roof Vertical
Min Roof Pitch 35° 75°
Batten spacing at max gauge 100mm 114mm
Size of tile 265 x 165mm 265 x 165mm
Covering Capacity 60 / m2 53 / m2
Cover Width 165 165
Weight as Laid 72 Kg / m2 63.6 Kg / m2
Battens Per M2 10m 8.8m
Batten Size – up to 450mm after centres 38mm x 25mm 38mm x 25mm
Batten Size – up to 600mm after centres 38mm x 25mm 38mm x 25mm
Nail Size / Type for Tiles 38 x 3.35mm aluminium ring shank clout nail 38 x 3.35mm aluminium ring shank clout nail

Where to Buy

      Additional information

      Tile Type

      Tiles, Eaves, Gables, Bonnets, Valleys, Hog Back Ridge, Half Round Ridge, Angles
